350-950mm Core Width Radiator Tank Clinching Machine Air Pressure 0.8Mpa

Name: 350950mm Core Width Radiator Tank Clinching Machine Air Pressure 08Mpa
Brand: Sunhope
Price: 1 USD

Brand Name : Sunhope

Place of Origin : Guangdong,China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T

Delivery Time : 60days

Packaging Details : plywood case suitable for sea transportation

Power Source : Pneumatic

Core Components : PLC, Motor

Suitable max. teeth numbers : 100 (customized)

Machine weight : 3200kgs

Servo motor power : 1.5kw

Contact Now

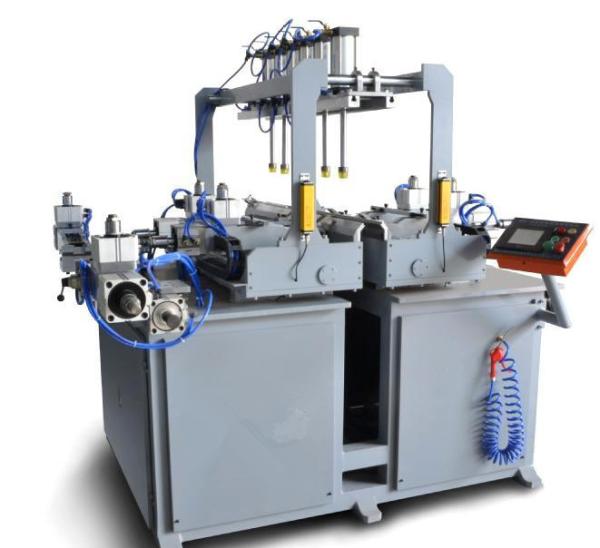

Air pressure 0.8 Mpa 350-950mm Core width Radiator Clinching Tool Car Water Tank Crimping Machine

Product parameter:

Technical Parameters of Radiator Tank Clinching Machine
Radiator height	350-950mm
Radiator max width	100-800mm
Crimping way	stepping way
Production capacity	about 24 cores per hour
Driving force	servo + pneumatic
Crimped teeth quantity	max 100 pieces
Total power	1.5kw
Voltage grade	AC-220V; 50Hz
Overall dimension	2200×2000×1900mm (LWH)
Weight	3.2 Ton

Product application:

The radiator water tank riveting machine is used to crimp the teeth of the header plate to lock the plastic water tank on the core. Combine the radiator core main board, sealing ring and plastic water chamber together. This servo-type plastic can buttoning machine is used to process products of various specifications. The crimping group worked step by step. Water tank crimping machine is also called crimping machine, water tank crimping machine, radiator water tank crimping machine, plastic water tank crimping machine, etc.

About us :
Foshan Sunhope company is located in the beautiful Foshan city.The main products are radiator crimping machine,core builder machine, radiator fin forming machine,ultrasonic cleaning machine,vacuum plastic packaging machines,aluminum cooling system brazing furnace,Air tightness testing machine for condenser radiator,aluminum foil for radiator fin,aluminum sheet for radiator head plate,aluminum radiator componets headplate,punching and shearing oil,aluminium flux.
